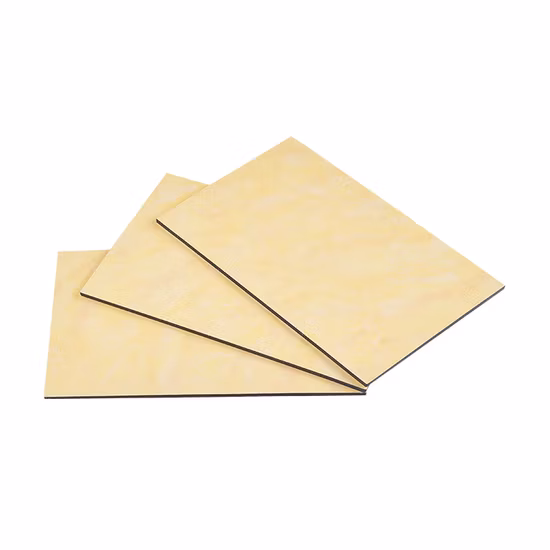

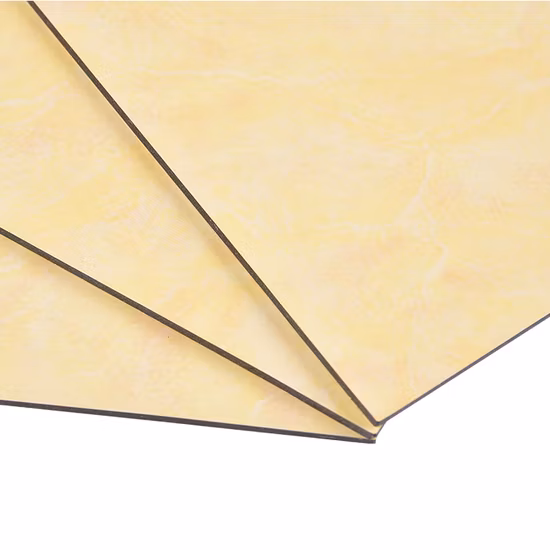

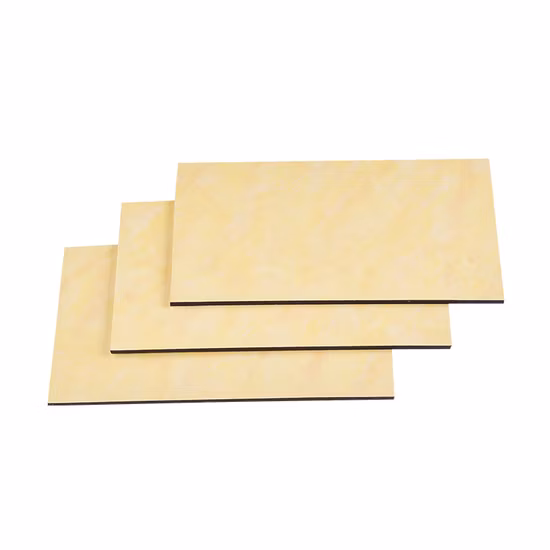

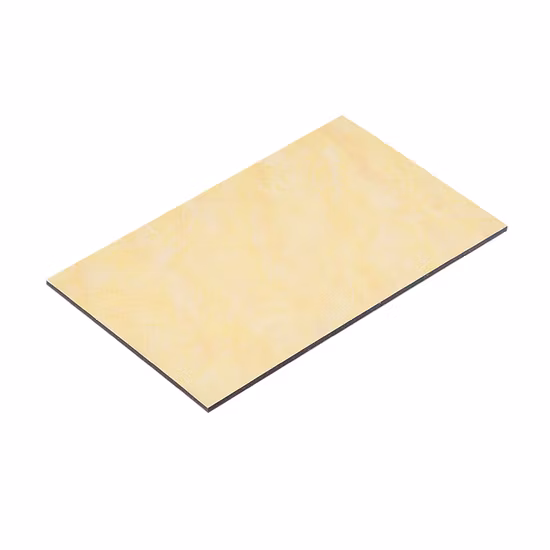

4mm ACP Aluminum Composite Panel with PVDF Coating for Exterior Wall Cladding

Basic Info.

Transport Package	in Bulk & Wooden Package
Specification	1220x2440
Trademark	GOODSENSE
Origin	China
HS Code	760612
Production Capacity	150000 Sqm

Product Description

Aluminum Composite Panel
Widely used, bendable, foldable, various colors and styles
Product Specifications
Thickness: 3mm, 4mm (1mm,1.5mm, 2mm, 5mm is also available)
Width: 1,220mm - 1,600mm
Length: 2,440mm (or customized)
Thickness of Aluminum: Aluminum Thickness 0.12/0.12mm for Board Thickness 3mm
(Or Customized from 0.05/0.05mm-0.21/0.21mm) Aluminum Thickness 0.40/0.40 for Board
Thickness 4mm (Or Customized from 0.08/0.08mm- 0.50/0.50mm)
Coating: PE Coating for Board Thickness 3mm (Or Customized)
PVDF Coating for Board Thickness 4mm Nano coating is availabe
Length: 2440mm (can be customized)

Product Introduction
The product incorporates modified polyethylene plastic core
layer in the middle that is nontoxic, enclosed with nonflammable
aluminum layers on both faces, and coated with fluorocarbon resin
(PVDF) or PE coating on its surface, featuring high brightness,
flatness, elegant surface coating, strong intention, lightweight,
superexcellent forming performance, durable, simple, quick
processing & installation and outstanding fireproof performance.
For protection, a protective film is used to cover the surface of
finished product.
Product Mix

COLORS

Technical Data

Fire Classification




Applications

Company Information
Professional Expert Of Aluminum Composite Panel

Guangzhou Goodsense Decorative Building Materials Co., Ltd.
Is one of the biggest decorative building materials enterprises in China.
Specialized in producing decorative building materials such as Aluminum Composite Panel,
Aluminum Core Composite Panel, CEP Board, ACP Tiles, PVC Wall Panel. Our company was founded in 1996. The factory covers an area of 140000 square meters.

Production Packaging

Company Honor

Goodsense is one of the first enterprises through the ISO9001/14001 International Quality
and Environmental Management System,
Products tested by SGS, with every performance indicators fully meet the national standards.
Our company participates in Aluminum Composite Panel national standard,
