Basic Info.

Model NO.	XJBS-A 5040/30
Form	Partly-welded Type
Operation Voltage	Low Voltage
Size	1 Uint
Application Range	Power Plants
Shell Material	Steel Plate
Shell Protection Grade	IP65
Brand	Xjele
Thickness	1.2mm
Color	Ral 7032
Paint Finish	Poxy Polyester Powder Coating
Customized	Accepted
Transport Package	Carton
Specification	400*400*200
Trademark	XJELE
Origin	China
Production Capacity	10000

Product Description

Material Body : 1.2mm sheet steel till size XJBS-A 8060/20 then 1.5mm Mounting plate : 1.5mm sheet steel till size XJBS-A 8060/20 then 2.0mm Door :1.2mm sheet steel till size XJBS-A 8060/20 then 1.5mmSurface finish Body and door :Epoxy polyester powder coating textured finish Mounting plate: Epoxy polyester powder coating flat finishColor Body and door :RAL7032/RAL7035 Mounting plate: RAL 2000 OR galvanized steelProtection degree:IP 65 Against mechanical impacts: IK10Supply:Enclosure, door ,Galvanized or orange painted mounting plate, locking system, gland plate, sealing gasket and fixing accessories.Customized size, thickness, process requrements is accepted.

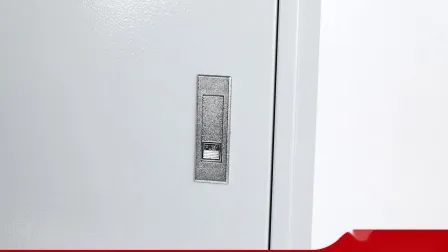

400 * 400 * 200 electrical wall mount distribution box board

powder coating spray Mild Sheet steel metal Outdoor waterproof distribution box,electrical wall mounted control panel electrical switchboard,spray paint IP66 waterproof metal distribution box,power distribution box,Electrical enclosure distribution box,Power distribution box,Waterproof metal enclosure distribution box,Industrial steel distribution box,wall mounted galvanised distribution box,wall mounted switch electric control panel,distribution box metal electrical distribution panel board enclosure,power control cabinet , powder coating spray steel electrical power switch box ,switching control double door electrical panel control cabinet, electrical panels IP66 Power wall mount small metal box.

MODE	DIMENSION			MODE	DIMENSION
	H(MM)	W(MM)	D(MM)		H(MM)	W(MM)	D(MM)
XJBS-A 2020/15	200	200	150	XJBS-A 6060/30	600	600	300
XJBS-A 2520/15	250	200	150	XJBS-A 7050/15	700	500	150
XJBS-A 3020/15	300	250	150	XJBS-A 7050/20	700	500	200
XJBS-A 3025/20	300	250	200	XJBS-A 7060/20	700	600	200
XJBS-A 3030/15	300	300	150	XJBS-A 7060/25	700	600	250
XJBS-A 3030/20	300	300	200	XJBS-A 7060/30	700	600	300
XJBS-A 3030/25	300	300	250	XJBS-A 8060/20	800	600	200
XJBS-A 4030/15	400	300	150	XJBS-A 8060/25	800	600	250
XJBS-A 4030/20	400	300	200	XJBS-A 8060/30	800	600	300
XJBS-A 4030/25	400	300	250	XJBS-A 8080/20	800	800	200
XJBS-A 4030/30	400	300	300	XJBS-A 8080/25	800	800	250
XJBS-A 4040/15	400	400	150	XJBS-A 8080/30	800	800	300
XJBS-A 4040/20	400	400	200	XJBS-A 10060/20	1000	600	200
XJBS-A 4040/25	400	400	250	XJBS-A 10060/25	1000	600	250
XJBS-A 4040/30	400	400	300	XJBS-A 10060/30	1000	600	300
XJBS-A 5030/15	500	300	150	XJBS-A 10070/20	1000	700	200
XJBS-A 5030/20	500	300	200	XJBS-A 10080/20	1000	800	200
XJBS-A 5030/25	500	300	250	XJBS-A 10080/25	1000	800	250
XJBS-A 5040/15	500	400	150	XJBS-A 10080/30	1000	800	300
XJBS-A 5040/20	500	400	200	XJBS-A 10080/40	1000	800	400
XJBS-A 5040/25	500	400	250	XJBS-A 100100/25	1000	1000	250
XJBS-A 5040/30	500	400	300	XJBS-A 100100/30	1000	1000	300
XJBS-A 5050/20	500	500	200	XJBS-A 12060/20	1000	600	200
XJBS-A 5050/25	500	500	250	XJBS-A 12060/25	1000	600	250
XJBS-A 5050/30	500	500	300	XJBS-A 12070/25	1000	700	250
XJBS-A 6040/15	600	400	150	XJBS-A 12080/20	1000	800	200
XJBS-A 6040/20	600	400	200	XJBS-A 12080/25	1000	800	250
XJBS-A 6040/25	600	400	250	XJBS-A 12080/30	1000	800	300
XJBS-A 6040/30	600	400	300	XJBS-A 12080/40	1000	800	400
XJBS-A 6050/15	600	500	150	XJBS-A 120100/25	1200	1000	250
XJBS-A 6050/20	600	500	200	XJBS-A 120100/30	1200	1000	300
XJBS-A 6050/25	600	500	250	XJBS-A 120100/40	1000	1000	400
XJBS-A 6050/30	600	500	300	XJBS-A 14060/40	1400	600	400
XJBS-A 6060/15	600	600	150	XJBS-A 14080/40	1400	800	400
XJBS-A 6060/20	600	600	200	XJBS-A 140100/40	1400	1000	400
XJBS-A 6060/25	600	600	250	XJBS-A 140100/40	1400	1000	400
More dimension information, please contact with us.
