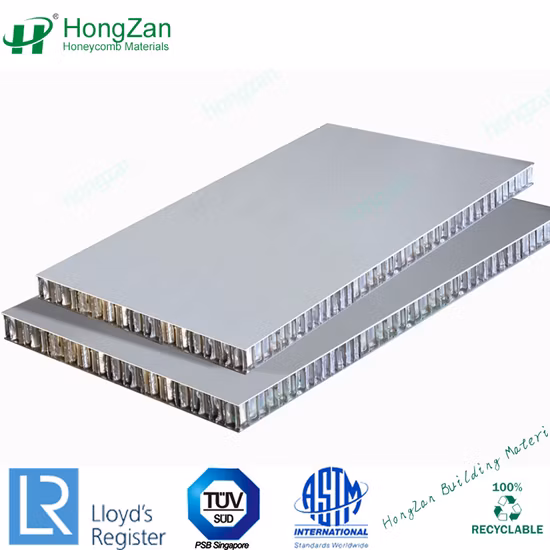

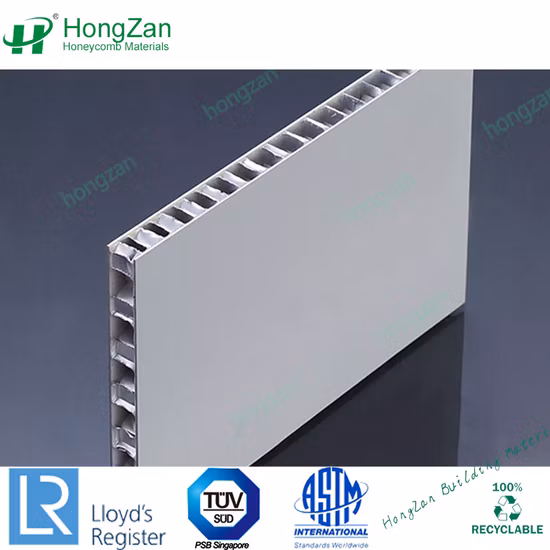

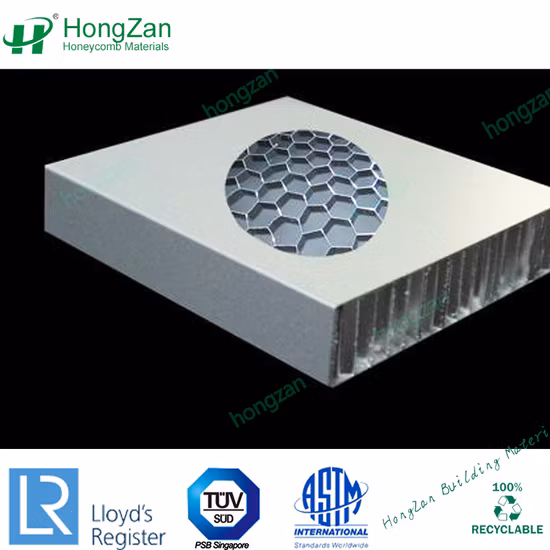

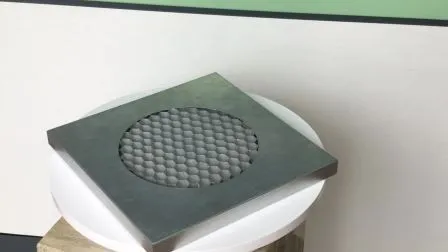

Building Material Curtain Wall Cladding Composite Sandwich Aluminium Honeycomb Panel for Exterior Facade

Basic Info.

Model NO.	AD-AHP
Level	A
Application	Interior & Exterior Decoration
Panel Coating	Roller Coated, PE Coated, Powder Coated
Foil Thickness	0.04mm, 0.05mm, 0.06mm, 0.07mm
Special Color	Wooden Grain and Stone Grain
Coating Color	Pure White, Metallic Color, Ral & Pantone Color
Edge Processing	Edge Closed or Edge Open
Adhesive	Bio-Component Modified Epoxy Resin
Temper	H24
Aluminum Alloy	Aluminum Alloy 5052/3003
Transport Package	Standard Export Package-Wooden Crate
Specification	Width: up to 2000mm, Length: up to 16000mm
Trademark	ARROW DRAGON
Origin	China
HS Code	7606119090
Production Capacity	30000sqm/Month

Product Description

Company Introduction
Arrow Dragon Metal Products Co., Ltd specializes in aluminum panels, including regular wall panels (solid aluminum panels, perforated/laser cut panels), curved panels (single curved/double curved/twisted panels), honeycomb panels (aluminum/stone aluminum honeycomb panels), expanded mesh, screen panels, and honeycomb core (aluminum/s.s./mild steel honeycomb core). Due to our outstanding metalwork and stable coating quality, our products have been approved by architects and used in many big projects (pls find it in below Projects Reference).
Aluminum honeycomb panels are made of high-quality aluminum plates, and apply roller coating/powder coating on the surface, the panels can be prevented color fading and corrosion from UV, high temperature, humidity, and atmospheric erosion.
Our 6 Main Products

Specification of Aluminum Honeycomb Panel

Aluminum alloy	Aluminum alloy 5052/3003
Temper	H24
Honeycomb panel thickness	3.5-300mm
Dimension	Width: up to 2000mmLength: up to 16000mm
Aluminum face sheet	Thickness: 0.5-1.2mm
Aluminum base sheet	Thickness: 0.5-1.2mm
Honeycomb core	Aluminum alloy 3003 H24 Cell size: 1/2inch, 1/4inch, 3/8inch Foil thickness: 0.04mm, 0.05mm, 0.06mm, 0.07mm
Adhesive	Polymer adhesive film Bio-component modified epoxy resin. Bio-component modified polyurethane
Coating	Fluorocarbon roller coating PE coating Powder coating
Color	Pure white, Metallic color, RAL & Pantone Color
Special color	Wooden grain and stone grain

Coating Layer Composition of Roller Coating and Powder Coating

Features of Aluminum Honeycomb Panel

1. Extremely lightweight.
2. Excellent strength, good rigidity, and super stiffness.
3. High resistance to moisture and corrosion.
4. Fire resistance and shockproof.
5. Heat insulating and soundproof.
6. Easy to be processed into any artistic designs or unique shapes.
7. Easy and safe for installation.
8. Diversity color choices bring an elegant decorative effect.
9. Cost efficiency.
10. Recyclable, friendly to the environment.

Workshop Show

Production Procedure
Sheet metal procedure
Cutting/Shearing - Punching - Arcrolling - Bending - Welding - Burnishing - Rib Assembling - Rivet Assembling - Polishing - Spray Coating.
Spray coating procedure
Hanging - Skim - Alkali - Elimination (by acid) - Chromizing - Drying - Spraying Coating - Baking - Inspection.
Compositing procedure
Gluing - Core Compositing - Sheet Compositing - Vacuum Pressing

Package & Delivery

Application
Aluminum honeycomb panels are widely used in our daily life, not only in architecture area but also in transportation and other areas.Architecture areas:Used for architecture: curtain wall, façade cladding, ceilings, roofing, soffit, and column cover of the buildings.Transportation areas:Used for cruise ships, fast ferries, luxury marine, yachts and other special vessels.Used for the rail vehicle, lorry, cabins, and flap systems.Other areas:Used for the cleanroom, lightweight containers, carbines for the machine tool, wind tunnels, and lifts platforms.Used for furniture, work table, and countertop. Mobile platforms for scenes or audiences.Used for floating cover for the oil tank.Used for solar energy panels.Used for bus stop shelter, sunshade, and awning platform.Used for the platen, fixture, and infill panels.Used for machine enclosure, machining surface.
Installation Diagram

Projects Reference

International Exhibition

FAQ

Q: Do you provide free samples?

A: Yes, samples are free of charge. But you need to offer one courier account NO. to afford the fee for sample delivery. The delivery of samples usually takes 3-5 days.

Q: Are you a factory or a trading company?

A: We are a manufacturer of Aluminum wall panel, we have our own factory in Foshan City, Guangdong Province.

Q: Is possible to make products for my brand?

A: Yes, it's possible. Please give us your brand or LOGO design, then we can make the product with your brand or LOGO.

Q: What if you send me wrong size products?

A: Shop drawing will be sent to you for final confirmation before production, if we send you the wrong size products, we will replace new products free of charge.

Q: How long is your quality warranty and after-sales service?

A: Quality warranty of PVDF/Powder Coating can be up to 25 years. We also can provide small quantity panel with the same color for damage replacement that happen in installation.
