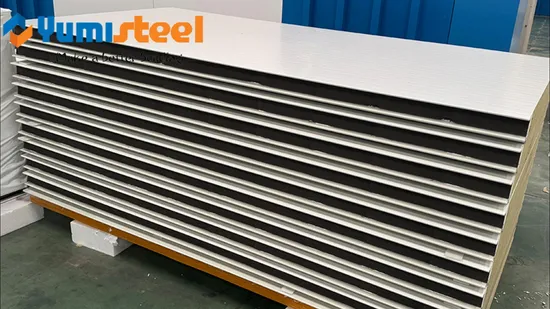

Z Locked EPS Foam Insulated Metal Sandwich Panel for Roof/Wall

Basic Info.

Model NO.	950/960/1150
Zinc Coating(G/M2)	60-275
Heat Conductivity Coefficient(W/M.K)	Equal or Less Than 0.041
Color	as Ral or Customized
Length	Max 5.9m for 20gp;11.9m for 40gp/Hq
Steel Sheets Thickness(mm)	0.3-0.75
Effective Width(mm)	950/960/1150
Model Type	950/1150 for Wall;960/970/980 for Roof
Transport Package	Seaworthy Packing Standard/as Customer′s Request
Specification	As per order QTY
Trademark	YUMI
Origin	Xiamen, China
HS Code	72104900
Production Capacity	100, 000 Square Meter Per Month

Product Description

1,Product introduction of SIP sandwich panels:

SIP sandwich panels is one kind of new panels,which we bought in equipment for one of our Australian customer,we exported to him for around 200,000 square meters per month.Actually it's not big difference from common sandwich panels,just different on the connection way.It is also combined by two sides of steel sheets and core material,which could be EPS and rockwool.
2, EPS roof & wall sandwih panel types:

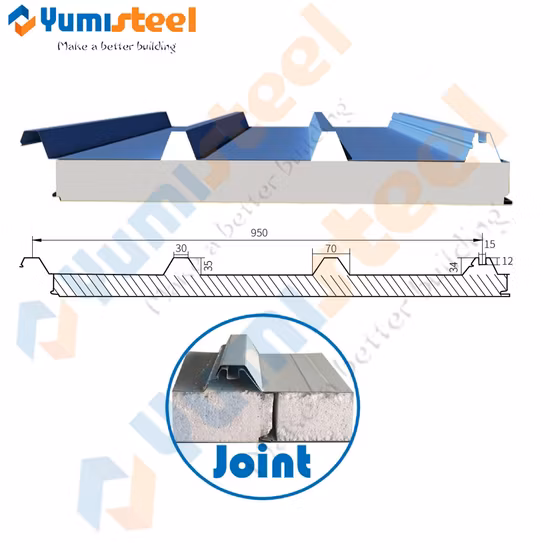

Consealed joint Z lock roof panels:

Overlap joint Z lock roof panels:

Z locked joint insulated wall panels:

Overlap joint insulated wall panels:

3,Product specs:

Product name:		EPS sandwich panels
Steel sheet description:		1,Range:0.30-0.75mm;2,Steel band:Bao-steel/Guanzhou steel/Yeih steel,etc;3,Top coating:20-25μm,bottom coating:7-10μm4,Coating type:PE/PVDF/SMP,etc.5,Steel material choice:PPGI/PPGL
EPS	thickness for wall:	25, 50,75, 100, 150, 200,250mm
	thickness for roof:	50,75, 100, 150, 200,250mm
	Density:	8-24KG/M³
Effective width:		950/1150mm for wall;950/960/970/980mm for roof.
Regular color:		White grey/Sea blue/DK grey
Special color:		As per RAL swatches or customized
Length:		According to container size,we advise max 5900mm for 20FT container,and 11900mm for 40FT container.
Fire resistant level:		B1 level,according to GB/T 23932-2009
Installation accessories:		U channels,self screws,expanded bolts,etc.

4,Regular colors for choices:
We could also offer sandwich panels with different kind of grains,such as brick grain,stone grain,Camouflage grain,etc.
5,Product features:
1)Good heat and fire Insulation;2)Chinese standard B2 fireproof level(Could offer test report);3)Fast and Easy installation(Could offer installation video or node introduction for reference);4)Affordable price;5)Light weight with density 8-24KG/M³.
6,Product loading:
7,Product application and joint sites:
This kind of EPS sandwich panels could be used for steel factory buildings,warehouse storages,exhibition halls,gymnasiums,workshop,perfab houses,container houses,etc.
8,Service&Support:
Xiamen Yumi New Material Tech. Co., Ltd. Is one combination of industry and trade company, and very professional with steel structure products in China. We are proud of our product quality and customer service and competitive price.And our products are sold worldwide, such as America, South America, Europe, Southeast Asia, Africa etc. 1)Professional sales team,One-to-one service;2)Combination of industry and trade company,to ensure the service and price;3)Experienced engineer team to offer professional technology service;4)Intimate after-sales service.Experienced technology suport, competitive price, professional service, we are here to help you go on with your project smoothly.
